![120L Heat Pipe Vacuum Tube Solar Thermal Collector for Home](/uploads/s/6a8c45d090904d70b6d95ad2ffb02ce2.webp)

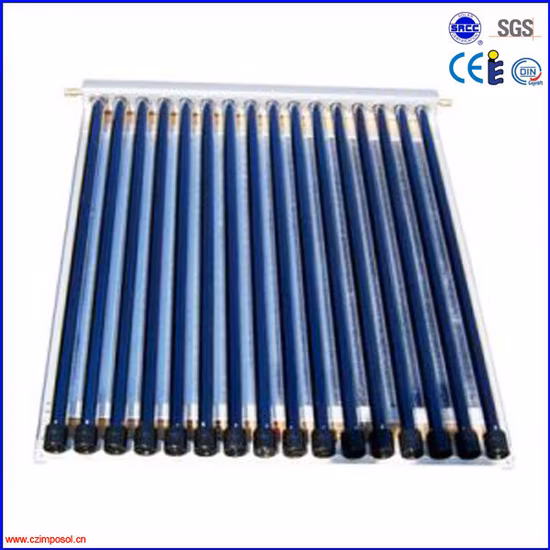

120L Heat Pipe Vacuum Tube Solar Thermal Collector for Home
58mm vacuum tube heat pipe solar collector Main specifications Inner manifold:copper header pipe (ASTM:C1100,DIN:ECu58);
Description
Basic Info
Model NO. | IPRB A(B) Solar Collector |
Type | Pressurized |
Application | Water Heater, Solar Thermal |
Pipe Material | Glass |
Brand | Imposol or OEM |
Pressure | Pressurized |
Antifreezng | -50c |
Color | Requirements of Customers |
Installation | Freestanding |
Model | Iprb a(B)581812 |
Tubes No. | 12 Tubes |
Lighting Area(M2) | 1.68 |
Supply Water Capacity(Liters) | 120L |
20gp/Hq Loading Qty(Sets) | 161/392 |
Transport Package | Carton |
Specification | CE/Solar Keymark/IOS9001/CCC |
Trademark | IMPOSOL |
Origin | Jiangsu |
HS Code | 8419191000 |
Production Capacity | 1000/M |
Product Description
58mm vacuum tube heat pipe solar collectorMain specifications
Inner manifold:copper header pipe (ASTM:C1100,DIN:ECu58);
potable water rated.Maximum pressure:800kPa
Vacuum tube:Borosilicate 3.3 twin wall all glass 58*1800mm, high efficient coating, vacuum:P<5*10-3 Pa
Heat pipe: high purity "oxygen free" copper(ASTM:C10200,DIN:OFCu), startup temperature: ~30deg
Outer manifold: 5005H16 Aluminium with Anodized or Powder Coated Finish or 304 stainless steel
Insulation: high quality glass wool (K=0.043W/mK), average>50mm
Frame: 202 stainless steel or 6005-T5 Aluminium Alloy
Connection: 22mm OD copper(Europe)
Rubber components: HTV Silicone Rubber(UV stabilised)
Reflector: Aluminum component/stainless steel
model | lighting area() | vacuum tube | supply water capacity(liter) | 20GP/40HQ Loading Qty(sets) | ||
Φ(mm) | L(mm) | Qty(pcs) | ||||
IPRB A(B)581810 | 1.4 | 58 | 1800 | 10 | 85-100 | 174/423 |
IPRB A(B)581812 | 1.68 | 58 | 1800 | 12 | 100-120 | 153/372 |
IPRB A(B)581815 | 2.1 | 58 | 1800 | 15 | 125-150 | 128/311 |
IPRB A(B)581818 | 2.52 | 58 | 1800 | 18 | 150-180 | 102/251 |
IPRB A(B)581820 | 2.8 | 58 | 1800 | 20 | 170-200 | 95/230 |
IPRB A(B)581824 | 3.36 | 58 | 1800 | 24 | 200-240 | 82/200 |
IPRB A(B)581825 | 3.5 | 58 | 1800 | 25 | 210-250 | 79/192 |
IPRB A(B)581830 | 4.2 | 58 | 1800 | 30 | 250-300 | 67/163 |
Automatic Workshop
1,Modern workshops have advanced production lines and professional knowledge of assembly.
2, Flow card to record each details carefully.
3,100% self-inspection before packing
Advantages
1, Economic and practical products from Sunlight , reliable performance,
2,Choose Sunlight, choose a rest assured,
3,Advanced production lines and test rooms,
4,Perfect QCP.(Quality control plans)
Application: car, truck, bus, cooler room
Packaging & Shipping
Strong packaging to ensure safety during transportation.
Export wooden box packaging for products.
FAQ
Q1,Can I have a sample for testing?
A: Yes,of courses we can supply the sample for you !
Q2:Can I add my logo on the water tank
A:Yes,OEM and ODM are available for us.But you should send us LOGO image
Q3: How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q4:Do you have inspection before delivery
A:100% self-inspection before packing
Q5 :Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.Here is our factory address:No. 5 Shengda Road, Konggang Industrial Park ,Luoxi Town, Xinbei District, Changzhou City, Jiangsu Province China
Company profile
ChangZhou Imposol New Energy Was founded in 2007. Our company is one of Chinese top10 manufacturers for solar water heating system.
As an OEM factory in china,We specialize in manufacturing various types of solar water heater,solar collectors and vacuum tubes.
We have also designed and carried out some wonderful solar water projects for hospitals, schools,factories and families as well as our own design for new products.
