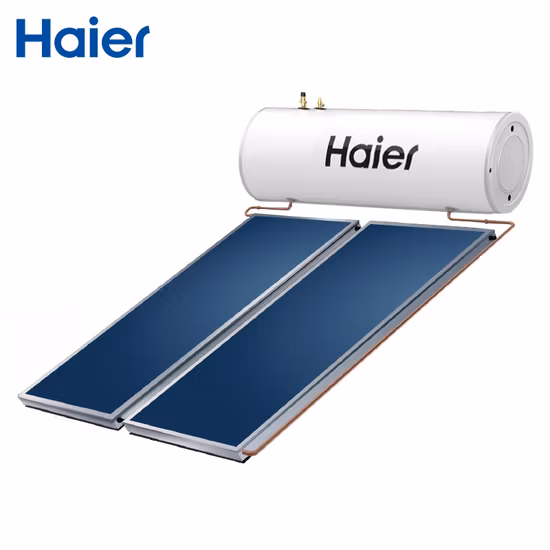

![Solar Selective Flat Panel Water Heater OEM Europe Solar Selective](/uploads/s/0edb5f115b6c42158684a1c609c894b2.webp)
Solar Selective Flat Panel Water Heater OEM Europe Solar Selective
Overview Product DescriptionDetailed Photos Inner Tank Material:Food grade SUS304 2B or SUS316LInner Tank Diameter:Φ360m
Description
Basic Info
Model NO. | BTLOCCB |
Collector Components | Glass Vacuum Tube |
Composition | Collector |
Certification | CE, ISO9001, CCC, RoHS, CB, SASO |
Inner Tank Material | Food Grade SUS304 2b or SUS316L |
Inner Tank Diameter | Φ360mm;Φ370mm;Φ380mm;Φ420mm |
Inner Tank Thickness | 0.31mm;0.38mm;0.4mm |
Outer Tank Material | SUS304;SUS316 |
Outer Tank Diameter | Φ460mm;Φ470mm;Φ480mm;Φ520mm |
Tube Number | 8/10/12/15/18/20/24/30/32/36/40 |
Frames (Stand Parts) | Galvanized Plate, Stainless Steel or Aluminum Allo |
Insulation Thickness | 50mm,55mm,60mm |
Transport Package | Stander Packing |
Specification | BTHW |
Trademark | Bestop |
Origin | Shandong China |
HS Code | 8419190000 |
Production Capacity | 50000 Pieces/ Year |
Product Description
Inner Tank Material:Food grade SUS304 2B or SUS316LInner Tank Diameter:Φ360mm;Φ370mm;Φ380mm;Φ420mm
Inner Tank Thickness:0.31mm;0.38mm;0.4mmOuter Tank Material:SUS304;SUS316Outer Tank Diameter:Φ460mm;Φ470mm;Φ480mm;Φ520mmInner Tank Thickness;0.4mm 0.45mm 0.5mmTube Number:8/10/12/15/18/20/24/30/32/36/40Frames (Stand Parts):Galvanized plate, Stainless steel or Aluminum alloyInsulation Thickness:50mm,55mm,60mmProduct Parameters
Description | Compact Pressurized solar water heater | |||
Material of out tank | 0.4mm thickness color steel/ sus 201BA | |||
Material of inner tank | Food grade 1.0-1,5mm mm thickness SUS304-2B or 316L | |||
Tank insulating layer | 50-55mm 45kg/m high-density polyurethane foamed | |||
Inlet and outlet hole | Male G 1/2. 3/4 | |||
Max pressure solar | 0.6Mpa | |||
collector tube | 3.3 Borosilicate glass with N/Al coating | |||
Thickness of glass | 1.6mm/1.8mm/2.0mm/2.2mm | |||
tube Vacuum tube | P<=0.005Pa | |||
tightness Bracket | 1.2mm stainless steel 201 or 1.5mm galvanized steel | |||
Design of tank | 5 holes for air vent water inlet and outlet,electric heater,Mag Rod | |||
Welding | Argon arc welding | |||
Fastening pieces. | Made of stainless steel screw | |||
Tank capacity | From 100-360L |
Working principlehow to workThe vacuum tube absorbs solar energy and converts it into heat energy. The water in the tank flows into the vacuum tube to heatthe water, and the density of cold water is greater than that of hot water. The cold hand absorbs the heat energy to form hotwaterwhat is pressur solar water heater?It uses the vacuum tube to absorb solar energy, and then converts the solar energy into heat energy, and transfers the heat to the water tank through the heat conduction tube inside the vacuum tube to increase the temperature of the water in the water tank, and then uses the pressure-bearing water tank to apply enough pressure to the water. In this way, when people use hot water, they will feel the same momentum as cold water. The vacuum tube of a solar water heater has a natural tracking ability for solar energy, and it can work normally as long as there is solar radiation. Installation Instructions
